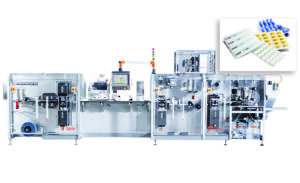

Exhibit 4 — TF1pro Blister Machine
Pharmaworks will be exhibiting the TF1pro, a medium output, world-class cGMP blister machine. The “pro” machine incorporates many new and exciting innovations in blister packaging. With speeds up to 100 indexes per minute and a usable forming range of 120mm x 165mm, the TF1pro blister machine is a versatile platform. It is not only designed with the latest cGMP features, but it can also be configured to transfer blisters out the front, rear, or inline with the machine.
Standard Features
- Servo driven stations, there is no line shaft
- Servo indexing with print registration adjustment and functionality
- Ability to adjust station stroke and pressure while running machine (Dynamic seal pressure adjustment)
- Modular feed area to accommodate feeders, accessories, and floor plans
- Single blister reject for multi-blister formats
- Enclosed base material
- Contact heating
- Retracting seal heater
- Seal station load cell & overload sensor
- Servo lowerator
- PC Based HMI
Optional Features
- Selective forming (ability to control individual cavities forming)
- Base and Lidding low roll level detection
- Pinhole detection
- Lid material splice table
- Slitter
- Product Vision Inspection
- Print Vision Inspection
- Feeders (manual feed trays, flood feeders, dedicated feeders)
- Servo plug assist/cold forming
- Various printer systems can be easily integrated
- Inert gas injection (helium/nitrogen)
For more information about the TF1pro Blister Machine click here.
Please use the links below to familiarize yourself with the technologies we will be exhibiting. We look forward to seeing you in Las Vegas!
